Zaga

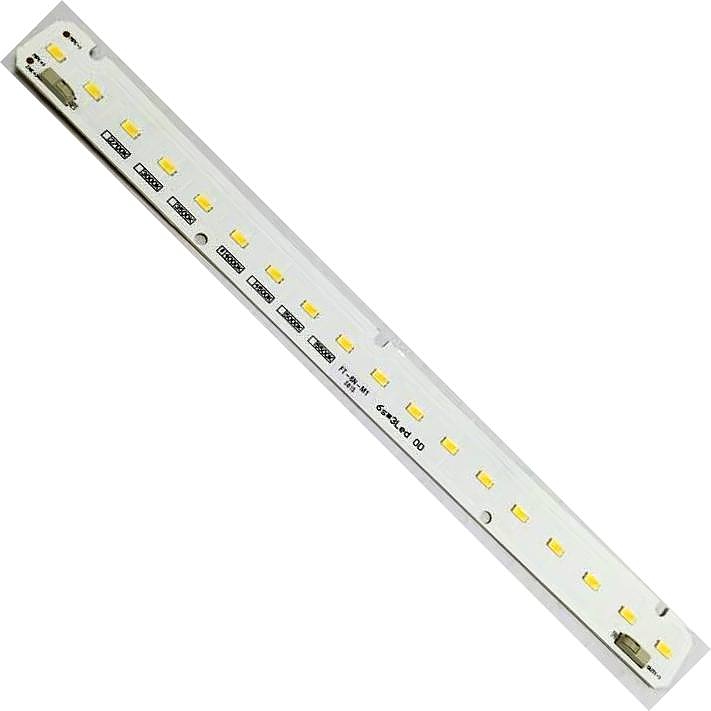

   Zaga module with LED chips of the latest generation achieve maximum efficiency values and optimum light uniformity. The modules have been specifically developed for use in linear and planar luminaires. The product range covers colour temperatures Warm White 2700K, 3000K, Neutral White 4000K and Cold White 5000K, 6000K with CRI > 80 and module efficiency of up to 159 lm/W. The module is driven by constant current. The design is improved for simple installation. The module family has a wide range of forward voltage and current allowing the use of most of the standard power supplies and creating a fixture with desired power and respectively luminous flux output.

 Benefits:

  • Ideal for linear and panel lights
  • Luminous flux range from 450lm – 2250 lm
  • Efficacy of the module up to 159 lm/W
  • High colour rendering index CRI > 80
  • Small colour tolerance (MacAdam 3)
  • Small luminous flux tolerances
  • Colour temperatures from 2700 K to 6500 K
  • Good uniform light, when several LED modules are used together in a line
  • Long life-time: >50,000 hours
  • Standard attachment holes location
  • Push terminals for quick and simple wiring of LED module to LED module
  • Simple installation (e.g. screws)
  • Zaga standard type screw position



Technical Specification:

Zaga

Color Temperature
K

Typ. luminous flux
at tj = 25 °C

Typ. Voltage
at tj=25 °C

Typ. power consumption
at tj= 25 °C

Luminous efficacy module
at tj= 25 °C

Colour rendering index
CRI

6x3
Operating mode High Efficiency
at constant current 350mA

3000 K

457 Lm

8.8 V

3.08 W

148 Lm/W

>80

4000 K

476 Lm

8.8 V

3.08 W

155 Lm/W

>80

5000 K

486 Lm

8.8 V

3.08 W

158 Lm/W

>80

6x3
Operating mode High Output
at constant current 700mA

3000 K

846 Lm

9.5 V

6.65 W

127 Lm/W

>80

4000 K

882 Lm

9.5 V

6.65 W

133 Lm/W

>80

5000 K

900 Lm

9.5 V

6.65 W

135 Lm/W

>80

3x6
Operating mode High Efficiency
at constant current 175mA

3000 K

457 Lm

17.5 V

3.06 W

149 Lm/W

>80

4000 K

476 Lm

17.5 V

3.06 W

156 Lm/W

>80

5000 K

486 Lm

17.5 V

3.06 W

159 Lm/W

>80

3x6
Operating mode High Output
at constant current 350mA

3000 K

846 Lm

19 V

6.65 W

127 Lm/W

>80

4000 K

882 Lm

19 V

6.65 W

133 Lm/W

>80

5000 K

900 Lm

19 V

6.65 W

135 Lm/W

>80

2x9
Operating mode High Efficiency
at constant current 175mA

3000 K

643 Lm

27.5 V

4.8 W

134 Lm/W

>80

4000 K

670 Lm

27.5 V

4.8 W

140 Lm/W

>80

5000 K

684 Lm

27.5 V

4.8 W

142 Lm/W

>80

3x15
Operating mode High Efficiency
at constant current 175mA

3000 K

1142 Lm

43.8 V

7.7 W

148 Lm/W

>80

4000 K

1191 Lm

43.8 V

7.7 W

155 Lm/W

>80

5000 K

1215 Lm

43.8 V

7.7 W

158 Lm/W

>80

3x15
Operating mode High Output
at constant current 350mA

3000 K

2115 Lm

47.2 V

16.5 W

128 Lm/W

>80

4000 K

2205 Lm

47.2 V

16.5 W

134 Lm/W

>80

5000 K

2250 Lm

47.2 V

16.5 W

136 Lm/W

>80
