X-WING

   SoftLine module with OSRAM and Samsung LED chips of the latest generation achieve maximum efficiency values and optimum light uniformity. The modules have been specifically developed for use in planar luminaires. The product range covers colour temperatures Warm White 2700K, 3000K, Neutral White 4000K and Cold White 5000K, 6000K with CRI > 80 and module efficiency of up to 180 lm/W. The module is driven by constant current max 1050mA with voltage of max 19V. The design is improved for simple installation. The LED engine is designed for a single line of 2 modules in series to generate huge luminous flux – to cover 4 standard lines of 600mm fluorescent tubes. Based on the new design LED panel X-WING.

 Benefits:

  • Ideal for linear and panel lights
  • Luminous flux range from 1300lm – 3900 lm
  • Efficacy of the module up to 180 lm/W
  • High colour rendering index CRI > 80
  • Small colour tolerance (MacAdam 3)
  • Small luminous flux tolerances
  • Colour temperatures from 2700 K to 6500 K
  • Good uniform light, when several LED modules are used together in a line
  • Long life-time: >50,000 hours
  • Excellent thermal menagment thanks to the high thermoconductive aluminum base
  • Push terminals for quick and simple wiring of LED module to LED module
  • Simple installation (e.g. screws)

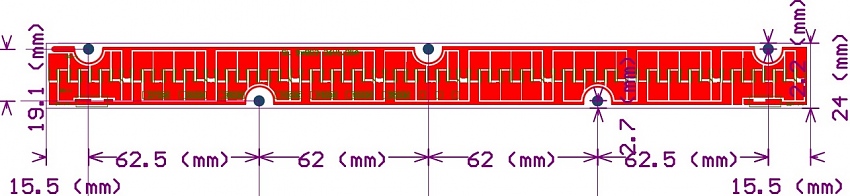

  • Zaga standard type screw position



Technical Specification:

X-WING

Color Temperature
K

Typ. luminous flux
at tj = 25 °C

Typ. Voltage
at tj=25 °C

Typ. power consumption
at tj = 25 °C

Luminous efficacy module
at tj = 25 °C

Colour rendering index
CRI

SL 9x8
Operating mode High Efficiency
at constant current 500mA

3000 K

1946 Lm

23.2 V

11.6 W

168 Lm/W

>80

4000 K

2041 Lm

23.2 V

11.6 W

176 Lm/W

>80

5000 K

2104 Lm

23.2 V

11.6 W

181 Lm/W

>80

SL 9x8
Operating mode High Output
at constant current 1050mA

3000 K

3640 Lm

25.1 V

26.4 W

138 Lm/W

>80

4000 K

3817 Lm

25.1 V

26.4 W

145 Lm/W

>80

5000 K

3935 Lm

25.1 V

26.4 W

149 Lm/W

>80

SL 9x6
Operating mode High Efficiency
at constant current 500mA

3000 K

1358 Lm

17.4 V

8.7 W

156 Lm/W

>80

4000 K

1414Lm

17.4 V

8.7 W

162 Lm/W

>80

5000 K

1446 Lm

17.4 V

8.7 W

166 Lm/W

>80

SL 9x6
Operating mode High Output
at constant current 1050mA

3000 K

2538 Lm

18.9 V

19.85 W

128 Lm/W

>80

4000 K

2646 Lm

18.9 V

19.85 W

133 Lm/W

>80

5000 K

2700 Lm

18.9 V

19.85 W

136 Lm/W

>80
