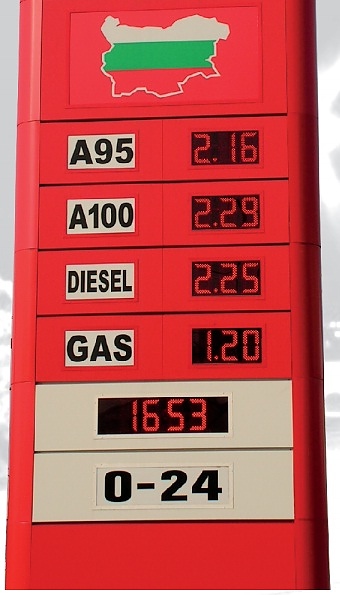

Totem for gas station


Based on the growing need of lowering energy consumption and increasing the visibility of the petrol station "flag" we have developed a totem with a modular construction - every module is separeted from the others and there can be connected up to 16 modules and 2 clocks/termometer (one on each side). There is a backlight for the petrol station name and the names of the products (diesel, A95, etc.). The used LEDs are special series for road signalisation - extremely visible even in direct sunlight. Their color can be customised as the color of the backlight. Every row - sign backlight plus lighting price tag has a total consumption of only 12 Watts. Thanks to the modular concept the modules can be build in any old petrol station totem. Because of the long LEDs lifespan - 100000 hours - there is no actual maintanance needed. The totem includes a build in termometer along the clock.

The installation can be done by a none technical personal - easy to install. Clock and price adjustment can be done by a RF remote, a keyboard buil in the totem or somewhere close or by a computer  - it is up to  the customer to dicide what suites him best.

Benefits

  • High efficiency leading to lower energy consumption
  • No annoying noises, vibrations and flickering
  • Long-life LEDs  (with an average rated lifetime of 70,000 - 100 000 hours) reduce the maintenance and product replacement costs that are associated with fluorescent systems
  • Great visibility
  • Ease of installation and adjustment
  • Custom light color
  • 100% efficacy - directed light which guarantees that all the luminocity goes where is needed


Technical Specification:

General Characteristics
LED chip manufacturer OSRAM
Modules count max. 16
Life of the LEDs 100 000hr
Operating temperature -25 - +50 °C
Sighns per module 3 + decimal point
Module length/height 280/860
Wattage per row 12 W
Clock+termometer with build in backup power supply 4 digits, 2 blinking dots, and a minus sign.
Backlight  custom color
Controll RF remote, keybord, computer



Downloads

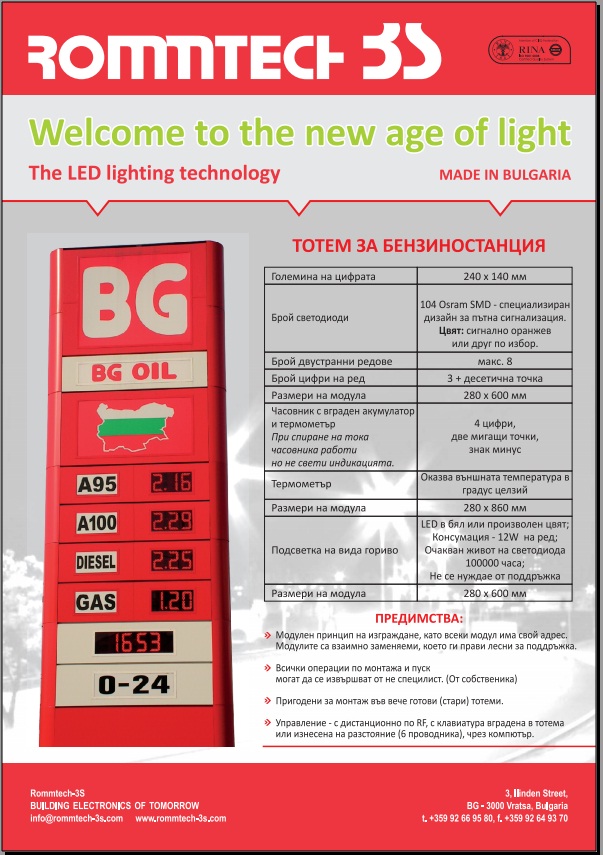

Brochure
size: 174 KB
