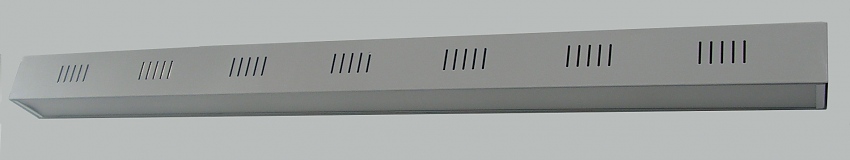

Office/industrial lighting TopLine


TopLine is one of the latest creations of the designers of Rommtech-3S company. Within its simple and yet elegat design TopLine contains highly efficient proprietary module T8/T5 LED combined with high efficiency specialised current driver and thanks to these qualities TopLine won the golden medal at the International Technical Fair in 2013. With equivalent dimensions TopLine produces the same amount of light with savings of up to 55% of electricity. The module features unique construction, integrated mirror optics, high efficiency diffuser and the latest LED technology with efficiency up to 110 lm/W. Produced in three sizes so TopLine can fit in anywhere.

Due to the high uniformity of the emitted light and the low overall brightness, TopLine is applicable where the unified glare rating is of importance: schools, offices, hospitals, working halls. Containing no mercury, lead, or glass, LED modules do not present risk of area contamination that is possible with fluorescent lamp breakage.

Benefits:

  • Excellent total cost of ownership with attractive payback times
  • No annoying noises, vibrations and flickering
  • Unified Glare Rating is lower or equal to fluorescent tube
  • Long-life LEDs (with an average rated lifetime of 70 000 - 100 000 hours) reduce the maintenance and product replacement costs that are associated with fluorescent systems
  • Significant sustainability opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
  • Overall, the usage of LEDs helps to reduce the internal heating in the premisses.
  • 100% efficiency - directed light which guarantees that all of the luminosity goes where you need it


Technical Specification:

>

   T8/T5LED

   8W

   15W

   25W

   General Characteristics







   LED manufacturer



OSRAM



   Housing

   Anodized aluminium, mirror optics, diffuser

   Life to 70% lumen maintenance



   70 000 - 100 000 hr



   Operating temperature



   -30 - +40 °C



   Electrical Characteristics







   Equivalent to fluorescent tube T5/T8

   14 W/ 18 W

   28 W/ 36 W

   35 W/ 58 W

   Type of power source

   230V AC with PFC









   Light characteristics







   Color temperature

   2700, 3000, 3500, 4000, 4500 or 5000 °C

   Color rendering index



   CRI > 80



   Luminous flux

   700 Lm

   1300 Lm

   2200 Lm

   Product Dimensions







   Length

   280 mm

   560 mm

   840 mm

   Width/ height



   55x51 mm



   Weight

   0,5 kg

   0,75 kg

   1 kg





Downloads

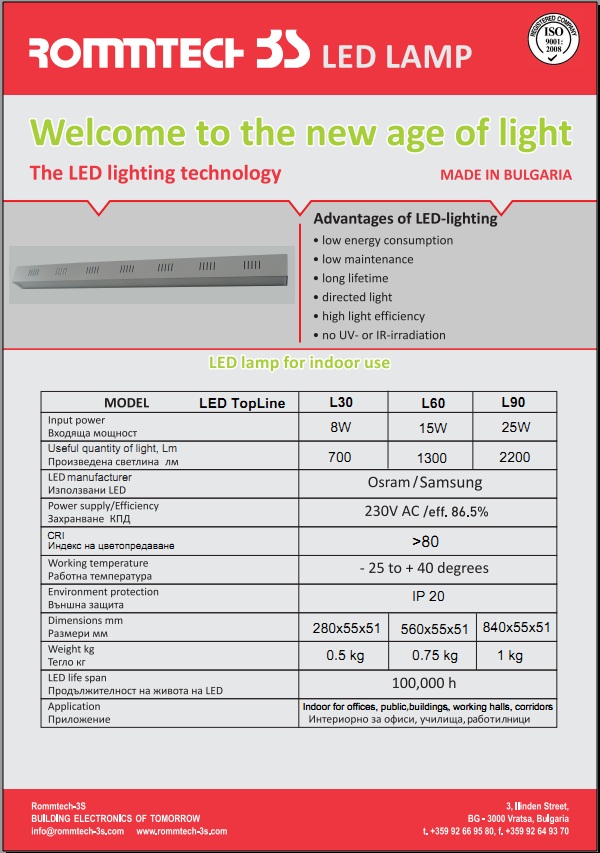

Brochure
size: 147 KB
