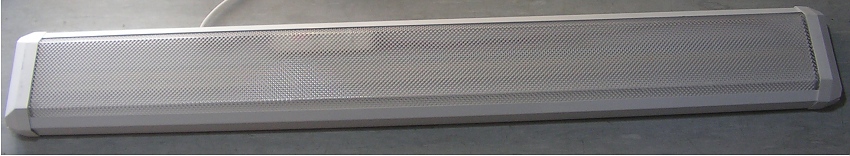

Indoor lighting 2xMWR


2xMWR is one of the new additions in the catalogue of the Rommtech-3S company. Designed specially for public buildings, working halls and offices so it can directly replace the old fluorescent lamps within a limited budget using all of the LED lighting advWithin its classical design 2xMWR contains highly efficient proprietary module T8/T5 LED combined with high efficiency specialised current driver. With equivalent dimensions 2xMWR produces the same amount of light with savings of up to 55% of electricity. The module features unique construction, integrated mirror optics, high efficiency diffuser and the latest LED technology with efficiency up to 110 lm/W.
Due to the high uniformity of the emitted light and the low overall brightness, T8/T5 LED is applicable where the unified glare rating is of importance: schools, offices, hospitals, working halls. Containing no mercury, lead, or glass, LED modules do not present risk of area contamination that is possible with fluorescent lamp breakage.

Benefits:

  • Excellent total cost of ownership with attractive payback times
  • No annoying noises, vibrations and flickering
  • Unified Glare Rating is lower or equal to fluorescent tube
  • Long-life LEDs (with an average rated lifetime of 70 000 - 100 000 hours) reduce the maintenance and product replacement costs that are associated with fluorescent systems
  • Significant sustainability opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
  • Overall, the usage of LEDs helps to reduce the internal heating in the premisses.
  • 100% efficiency - directed light which guarantees that all of the luminosity goes where you need it


Technical Specification:

LED 2xMWR 2x10MWR 2x20MWR
General Characteristics
LED manufacturer OSRAM / SAMSUNG
Environment protection IP54
Life to 70% lumen maintenance 70 000 - 100 000 hr
Operating temperature -30 - +40 °C
Electrical Characteristics
Input power 20 W 40 W
Type of power source 230V AC
;Light characteristics
Color temperature 2700, 3000, 3500, 4000, 4500 or 5000 °C
Color rendering index CRI > 80
Luminous flux clear/opal 2100/1800 lm 4200/3600 lm
Product Dimensions
Length 700 mm 1330 mm
Width/ height 170x50 mm  170x50 mm
Weight 2 kg 4 kg




Downloads

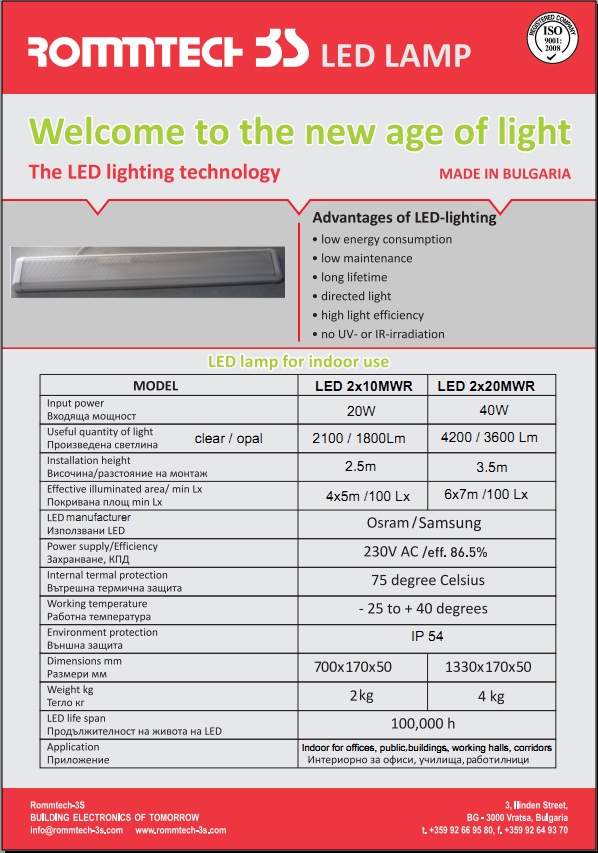

Brochure
