High light LED


Our High-light LED luminaires are designed to replace traditional tubular fluorescent/mercury lamps in warehouses and refrigerators with high ceilings. Giving a bright and narrow light beam, High-light provides optimal lighting vertically between the storage decks. The luminaire features the latest LED technology and has embedded high efficiency switching power driver.

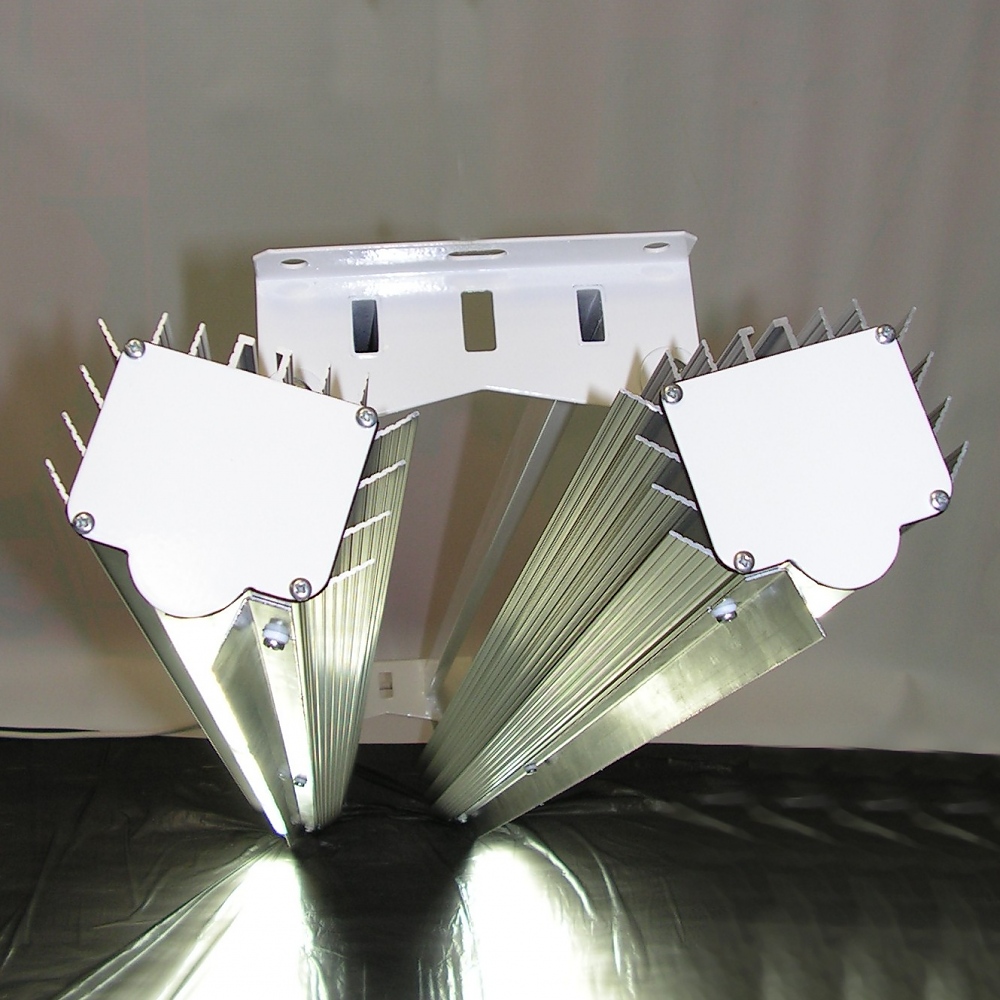

High-light LED luminaires have mounting brackets, which allow free rotation of the two LED modules within 90 degrees to aim the light beams towards the decks.

The lightening fixtures can be equipped with different lenses and diodes to suite the varying needs of the client (e.g. light beam angle and color temperature). Overall, the usage of LEDs helps to reduce the internal heating of the room, which is very important especially for refrigerators. Containing no mercury, lead, or glass, High-light do not present risk of food contaminations that is possible with fluorescent lamp breakage.

Benefits:

  • Excellent total cost of ownership with attactive payback times
  • Ease of installation and light direction change
  • No annoying noises, vibrations and flickering
  • Long-life LEDs (with an average rated lifetime of 70 000 hours) reduce the maintenance and product replacement costs that are associated with flourescent systems
  • Significant sustainobility opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
  • Overall, the usage of LEDs helps to reduce the internal heating in the premisses(especially in case of refregirators)
  • 100% efficay-directed light which guarantees that all of the luminocity goes where you need it


Technical Specification:

General Characteristics
&LED chip manufacturer Osram
Housing Anodized aluminium
Life of the LEDs to 70% lumen maintenance 70 000 - 100 000hr
Operating temperature -40 - +40 °C
Ingress protection IP 54
Electrical Characteristics
Wattage 140 W
Type of power supply 230 Vac with PFC and eff. 90%
Light characteristics
Color rendering index CRI ≥ 80
Luminous flux 9000 - 12000 lm
Product Dimensions
Width/length/height 350x1000x150 mm
Weight 6.5 kg




Downloads

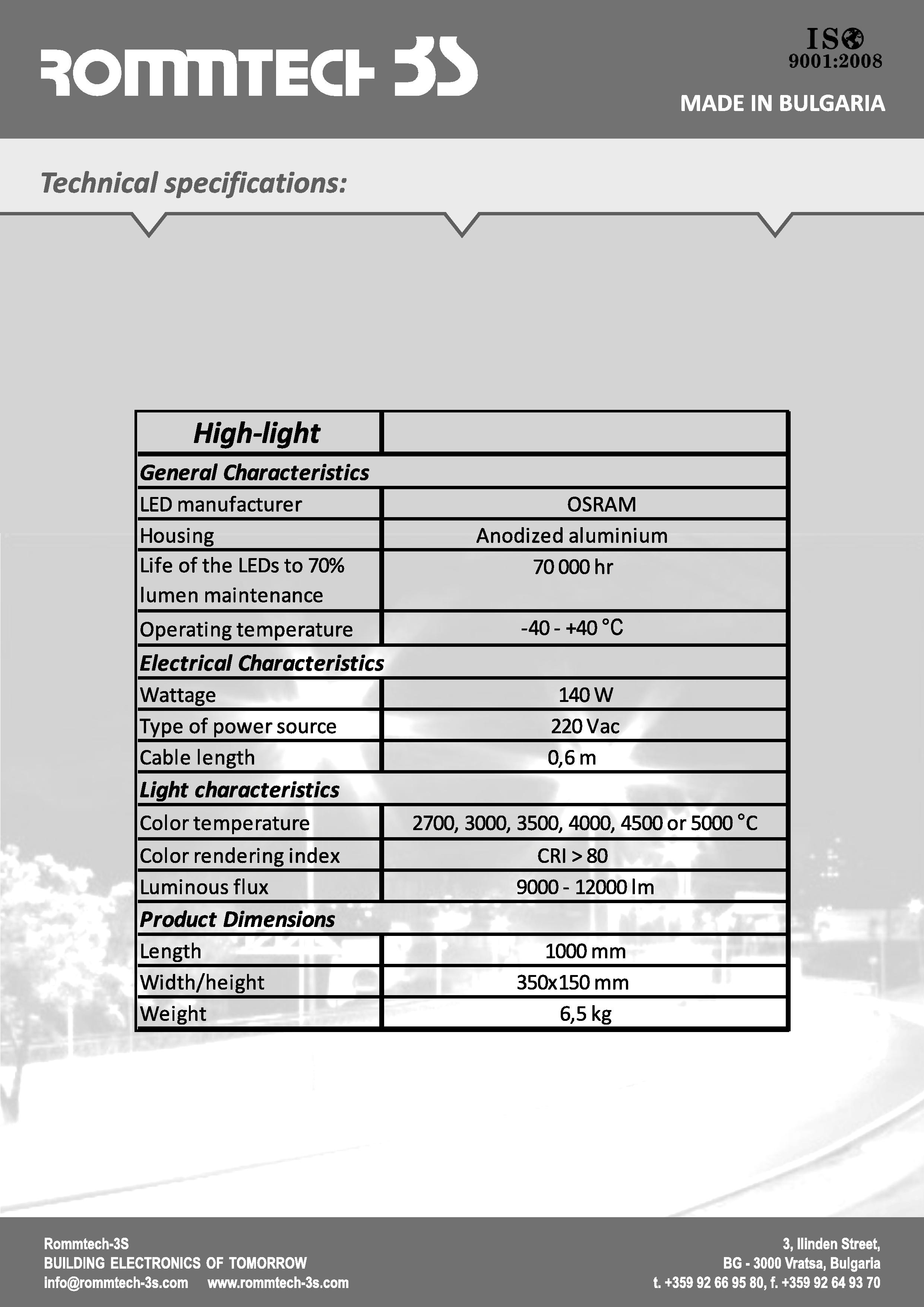

Technical specifications
size: 560 KB

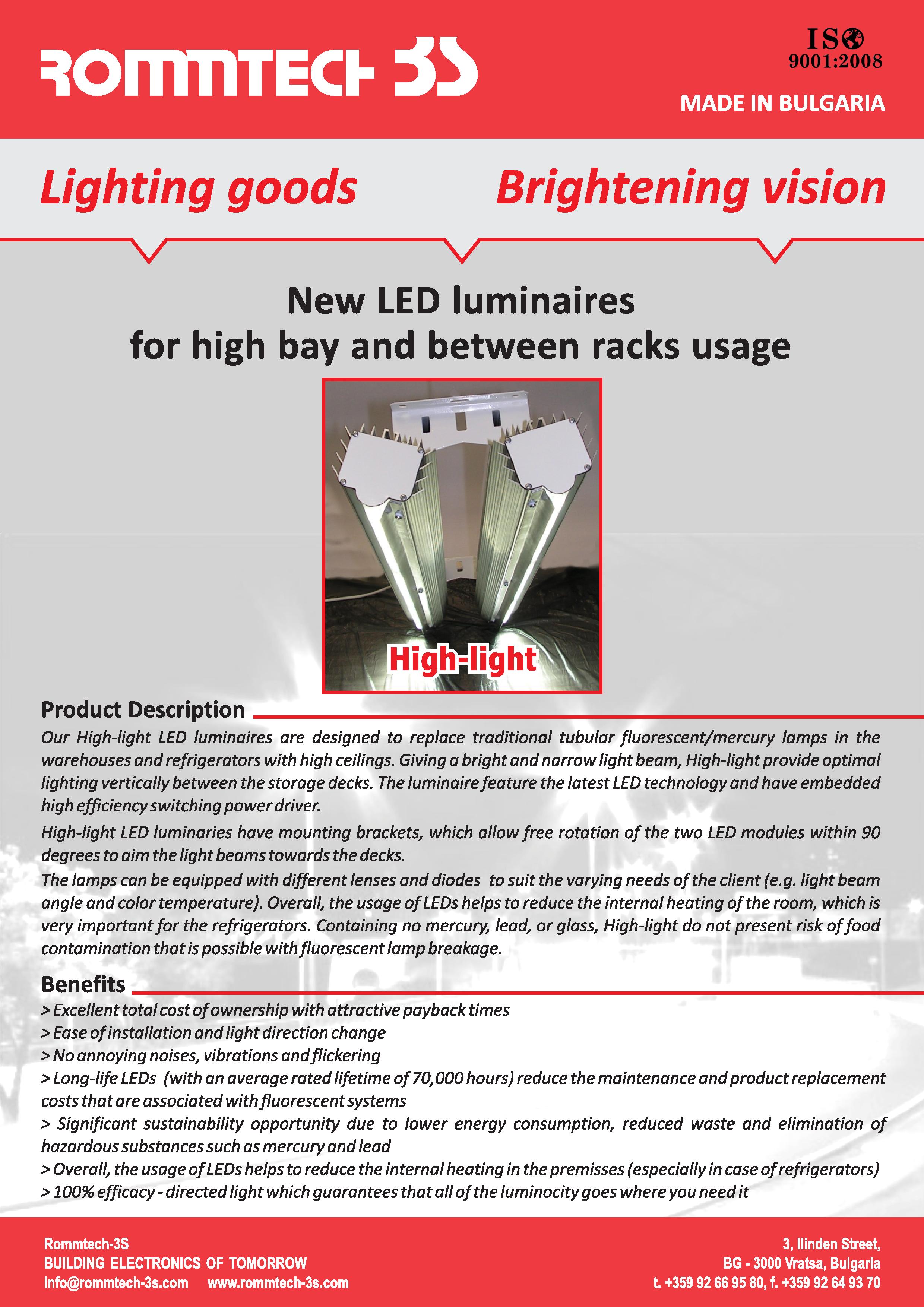

Brochure
size: 923 KB
