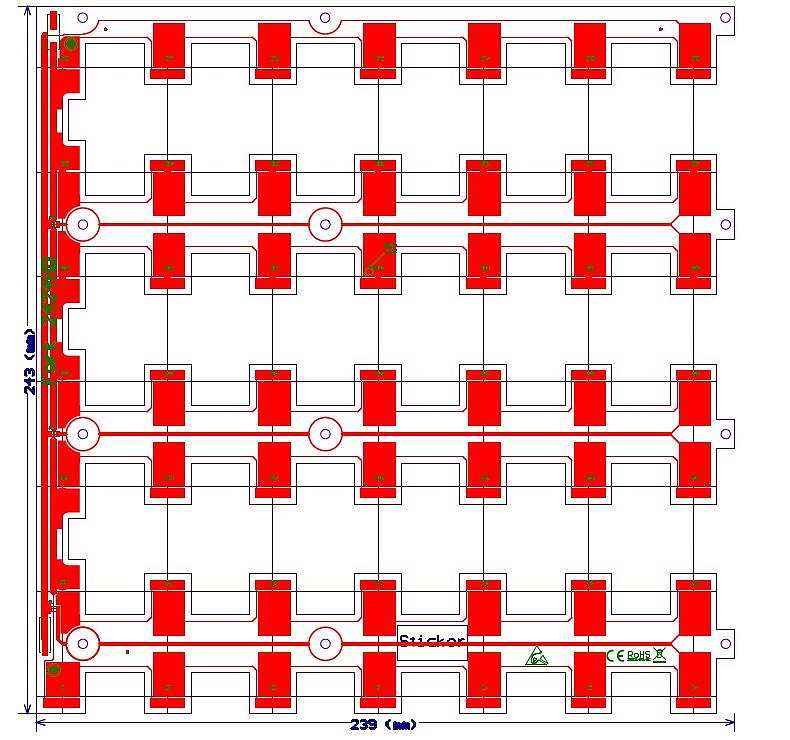

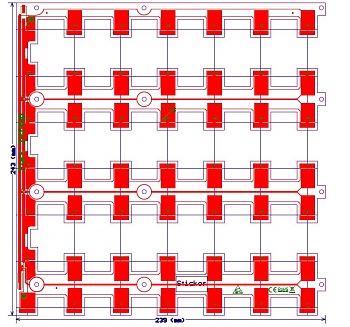

Fork 2424HD

   Fork 2424HD module with LED chips of the latest generation achieve maximum efficiency values and optimum light uniformity. The modules have been specifically developed for use in panel luminaires with diffused light. The product range covers colour temperatures Warm White 2700K, 3000K, Neutral White 4000K and Cold White 5000K, 6000K with CRI > 80 and module efficiency of up to 188 lm/W. The module is driven by constant current max 455mA/1050mA with voltage of max 23.5V. The design is improved for simple installation.

 Benefits:

  • Ideal for linear and panel lights
  • Luminous flux range from 1421 lm – 3969 lm
  • Efficacy of the module up to 188 lm/W
  • High colour rendering index CRI > 80
  • Small colour tolerance (MacAdam 3)
  • Small luminous flux tolerances
  • Colour temperatures from 2700K to 6500K
  • Good uniform light, even if several LED modules are used together in a line
  • Self-cooling (no additional heat sink required)
  • Push terminals for quick and simple wiring of LED module to LED module
  • Simple installation (e.g. screws)
  • Long life-time: 40,000 hours



Technical Specification:

Fork 2424HD

Color Temperature
K

Typ. luminous flux
at tj = 25 °C

Typ. Voltage
at tj =25 °C

Typ. power consumption
at tj = 25 °C

Luminous efficacy module
at tj = 25 °C

Colour rendering index
CRI

Module Low cost Efficiency
at constant current 455mA

3000 K

1421 Lm

21 V

9.6 W

148 Lm/W

>80

4000 K

1519 Lm

21 V

9.6 W

158 Lm/W

>80

5000 K

1568 Lm

21 V

9.6 W

163 Lm/W

>80

Module High Output
at constant current 1050mA

3000 K

2940 Lm

22.4 V

23.5 W

125 Lm/W

>80

4000 K

3087 Lm

22.4 V

23.5 W

131 Lm/W

>80

5000 K

3185 Lm

22.4 V

23.5 W

136 Lm/W

>80

Module High Efficiency
at constant current 455mA

3000 K

1617 Lm

20.65 V

9.4 W

172 Lm/W

>80

4000 K

1715 Lm

20.65 V

9.4 W

182 Lm/W

>80

5000 K

1764 Lm

20.65 V

9.4 W

188 Lm/W

>80

Module High Efficiency and High Output
at constant current 1050mA

3000 K

3638 Lm

22.05 V

23.2 W

157 Lm/W

>80

4000 K

3859 Lm

22.05 V

23.2 W

166 Lm/W

>80

5000 K

3969 Lm

22.05 V

23.2 W

171 Lm/W

>80
