14 OD

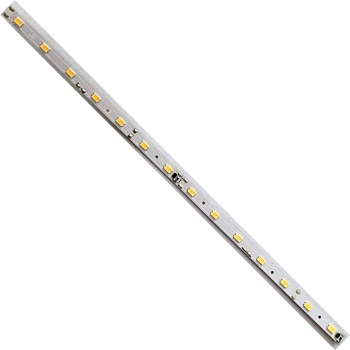

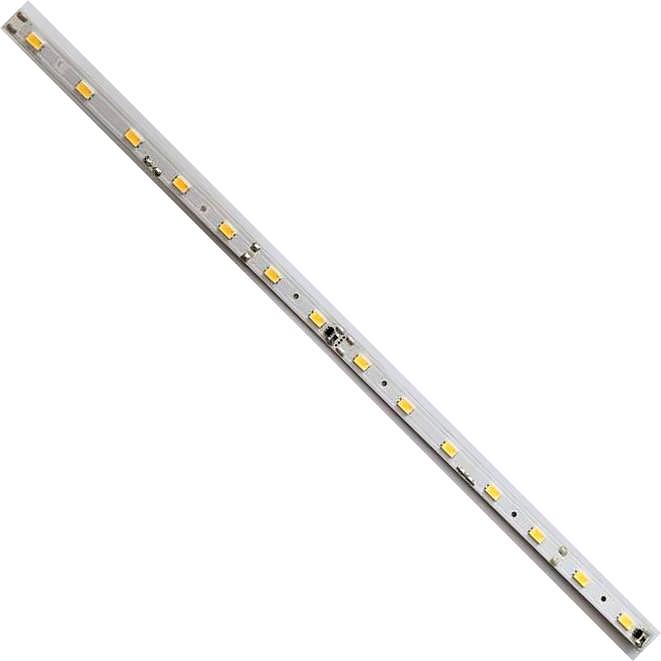

  14OD module with LED chips of the latest generation achieve maximum efficiency values and optimum light uniformity. The modules have been specifically developed for thin tubes and low-cost applications. The product range covers colour temperatures Warm White 2700K, 3000K, Neutral White 4000K and Cold White 5000K, 6000K with CRI > 80 and module efficiency of up to 125 lm/W. The module is driven by constant voltage 24VDC. The design is improved for simple installation. The module`s power can be customized up to 5W. It has build in protections against wrong connection of the power supply and overvoltage. Typical application is the LED module for shelves – In Light.

 Benefits:

  • Ideal for linear and panel lights
  • Luminous flux range from 390 lm – 590 lm
  • Efficacy of the module up to 125 lm/W
  • Ultra-thin design – only 8mm
  • Standard length – 300mm
  • High colour rendering index CRI > 80
  • Small colour tolerance (MacAdam 3)
  • Small luminous flux tolerances
  • Colour temperatures from 2700K to 6500K
  • Good uniform light, when several LED modules are used together in a line
  • Build in TVS for overvoltage protection
  • Build in schottky diode for wrong polarity protection
  • Simple installation (e.g. screws)
  • Long life-time: 40,000 hours

Technical Specification:



14 OD

Color Temperature
K

Typ. luminous flux
at tj = 25 °C

Typ. Voltage
at tj =25 °C

Typ. power consumption
at tj = 25 °C

Luminous efficacy module
at tj = 25 °C

Colour rendering index CRI

Operating mode High Efficiency
at constant voltage 24VDC
for Low flickering @ 140mA

3000 K

395 Lm

24 V

3.36 W

118 Lm/W

>80

4000 K

411 Lm

24 V

3.36 W

122 Lm/W

>80

5000 K

420 Lm

24 V

3.36 W

125 Lm/W

>80

Operating mode High Output
at constant voltage 24VDC
for Low flickering @ 200mA

3000 K

554 Lm

24 V

4.8 W

115 Lm/W

>80

4000 K

578 Lm

24 V

4.8 W

120 Lm/W

>80

5000 K

590 Lm

24 V

4.8 W

123 Lm/W

>80
